Home >> Product >>NIU Smart BMS >> NIU-U-13S70A
Product Detail

NIU-U-13S70A

Category
Smart Lithium BMS
Application Field
NIU U Original BMS Replacement
Number of battery cell strings
13
Continuous charge/discharge current
70A
Voltage
48V
Balanced
passive equalization
Temperature Protection
Support
Communication method
RS485、Bluetooth

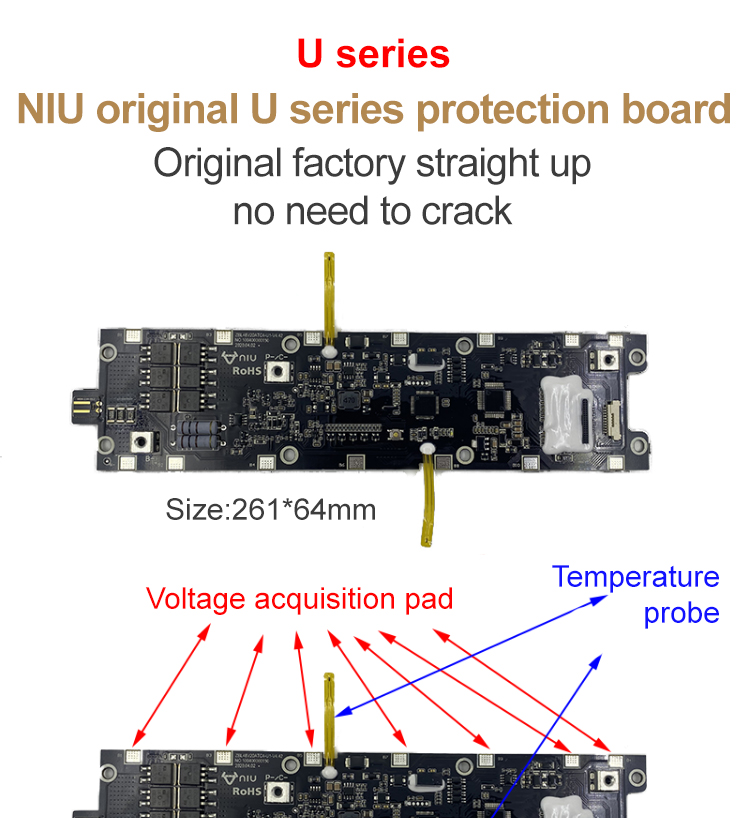

Size(mm)
261*64
Collect
  • Description
  • details
  • Parameter

Pre-purchase Notice:

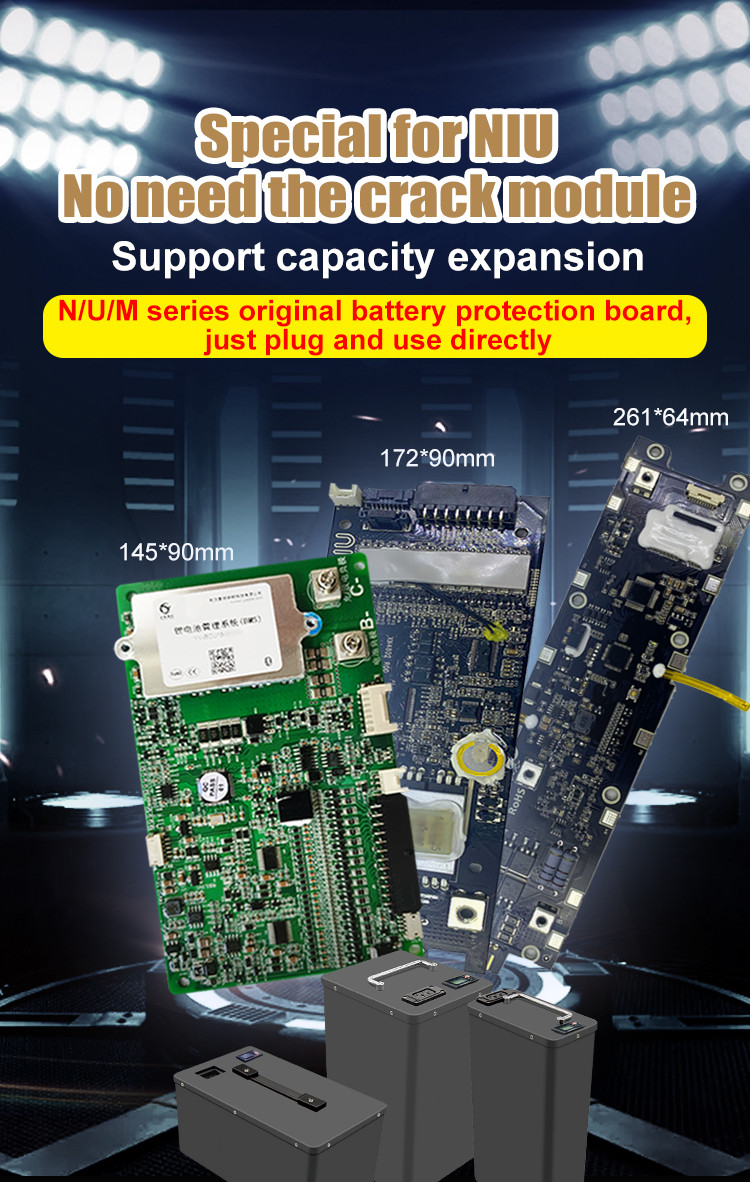

  • This product is suitable for ternary battery 13 strings of NIU batteries.

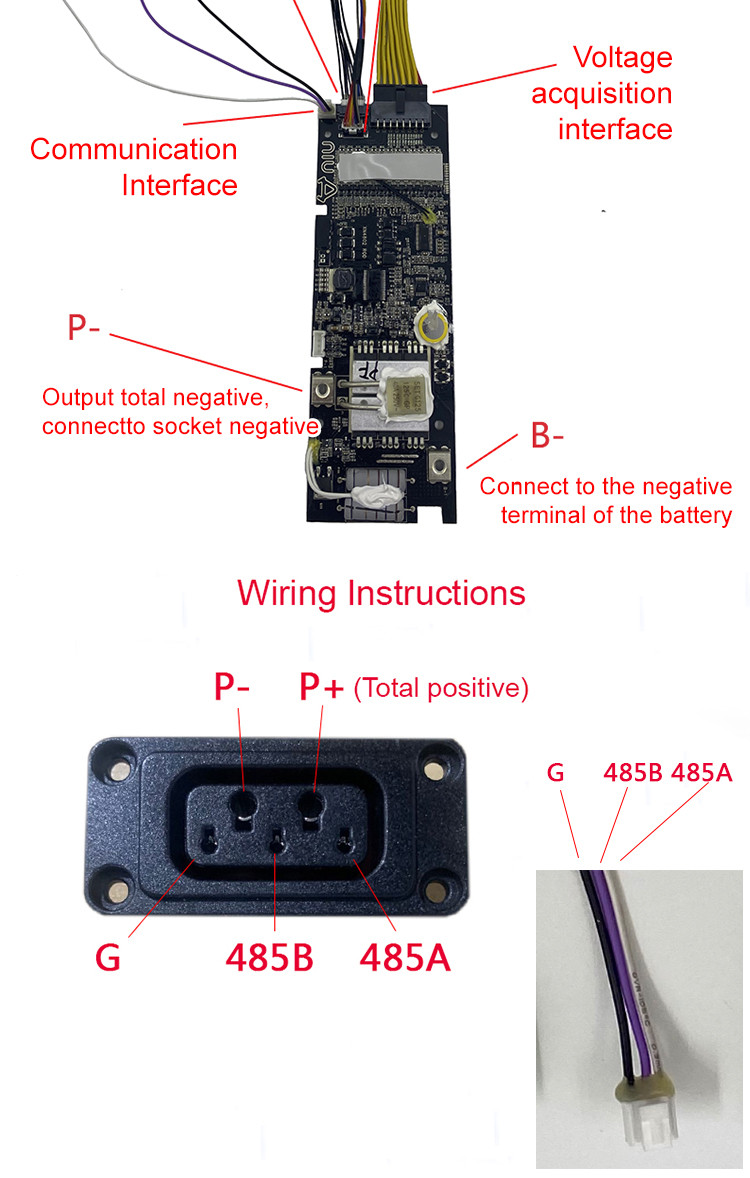

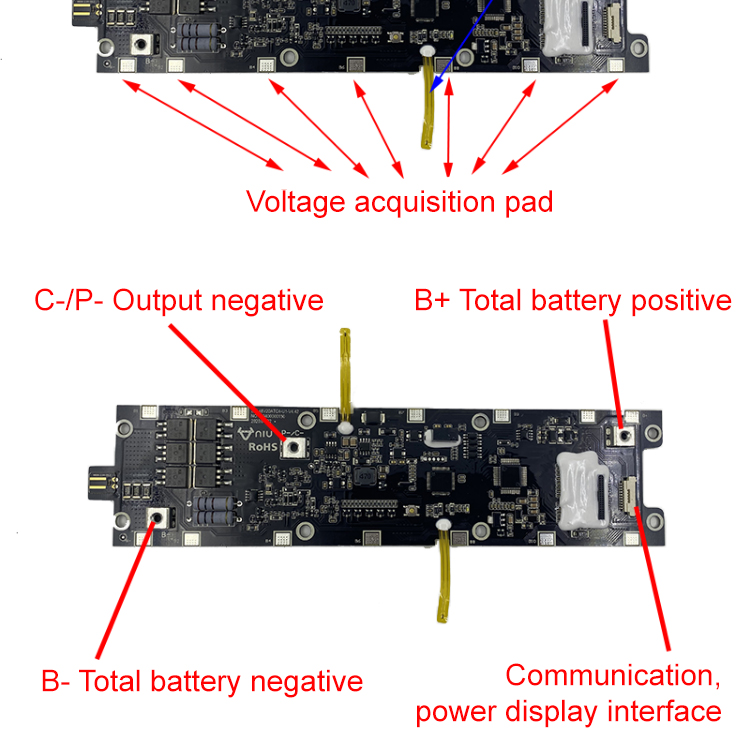

  • All accessories, connectors,  wiring harnesses and size are completely matched with the original NIU BMS.

  •  It is not need cracked module, you can perfectly replace the original NIU BMS. Especially suitable for the original battery BMS of NIU is damaged, directly replace it for BMS repair, of course, can also be used for new battery rebuilt.

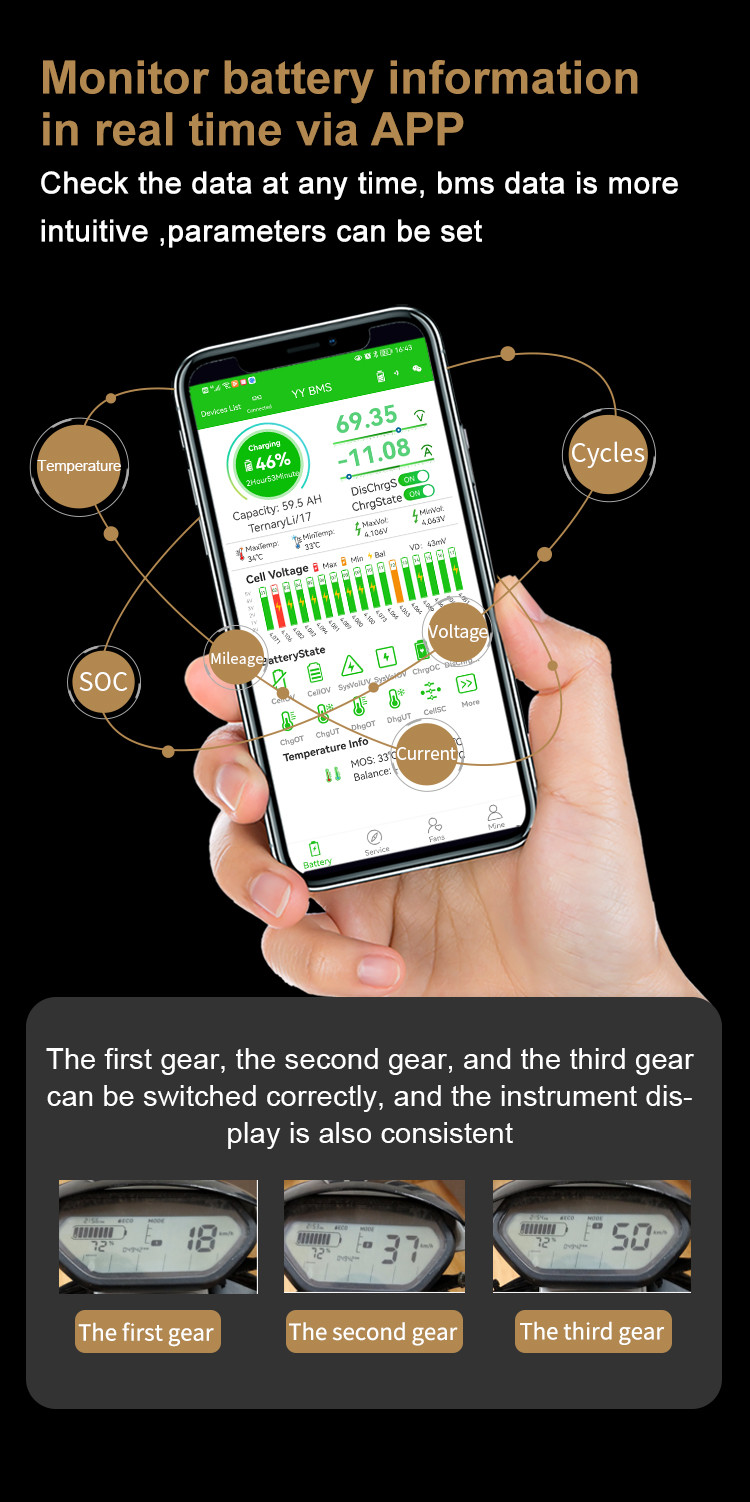

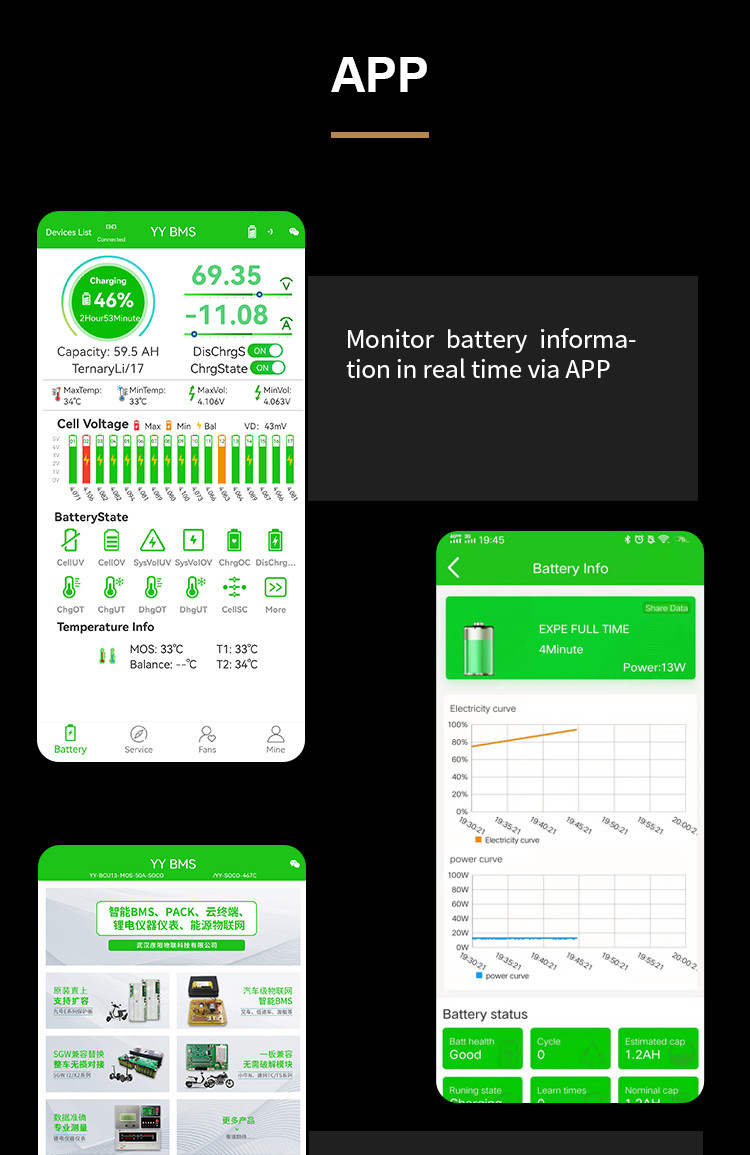

  • In addition to this, what distinguishes us from the original BMS is that we additionally provide a Bluetooth expansion module, which can monitor the detailed information of the battery through the Bluetooth APP, including temperature, voltage, current, power, charge and discharge curves, etc., which is particularly convenient for battery maintenance.

  • All the functions of the original NIU APP can be used normally.

Our advantage:

  • No need to crack modules;

  • Support Bluetooth extension

  •  Electricity SOC algorithm, more accurate than voltage method;

  •  Support original fast charge;

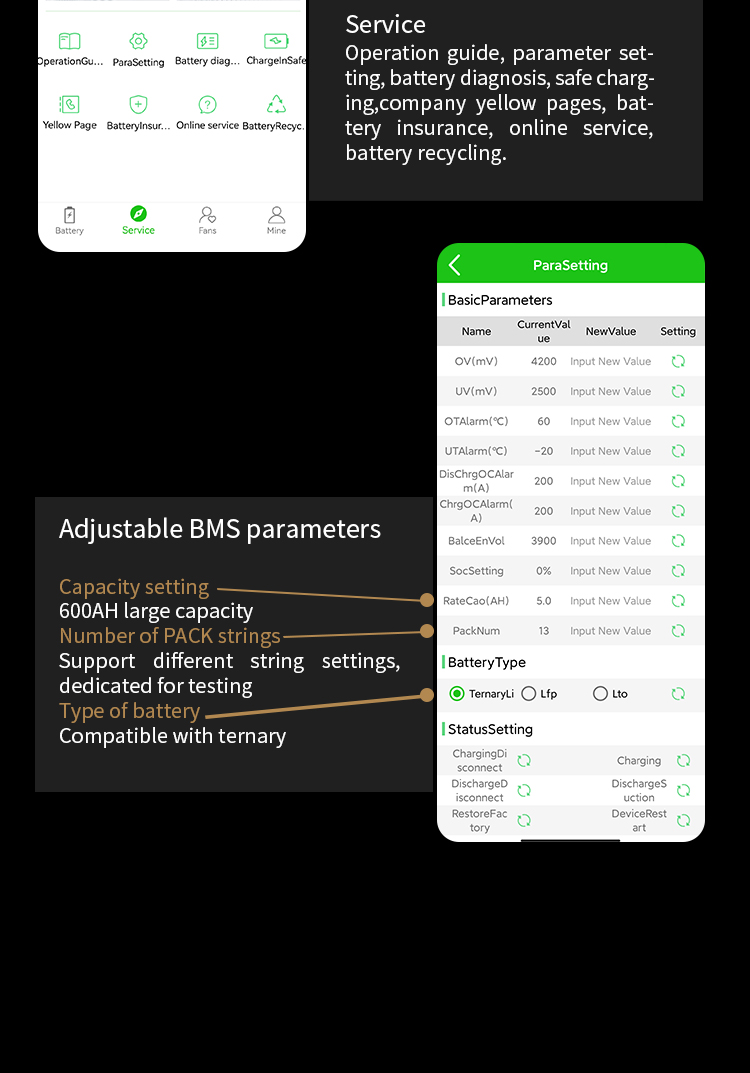

  • Support BMS parameter setting (support capacity expansion).


 Same type series

NO.

Model NO.

persistent current

Dimension

1

YY-BCU13-NIU-48V16A-U

16A

261mm*64mm

2

YY-BCU13-NIU-48V19A-U

19A

261mm*64mm

3

YY-BCU13-NIU-48V21A-U

21A

261mm*64mm



If you need more details or have any questions, please feel free to contact us.

If you want to buy in large quantities or become our drop shipping/Dropshipping customer, please contact us, we will give you a preferential price.

If you need other accessories of NIU, please contact us.





Product number

YY-BCU13-NIU-U

Charge MOS Pressure resistance

110V

Charging current

70A

Discharge current

70A

Communication method

RS485

Number of battery cell strings

13S

Battery cell type

Ternary lithium battery, lithium iron phosphate

Number of temperatures

4

Balance current

120mA

Over current capability

50A

Continuous

80A

5Min

100A

30S

Voltage range

0.5V  5V

Voltage accuracy

0.5%0-80℃)

0.8%-40-0℃)

Temperature range

-40- 80

Current range

-50A 50A

Current accuracy

1% (-50A  50A)

CAN communication

Non Support

RS485

Support

Manual wake up

Support

Charge wake up

Support

Bluetooth

Support

Low power indicator

Non Support

SOC accuracy

<5%

B-offline protection

Non Support

Stand by power consumption

460uA

Working power consumption

10mA

Event storage

70 cyclic event records

Status indicator

LED status light indication

Storage temperature

-20- 60
