BMS Relay Control BOX 72V

Category
Smart BMS
Application Field
AGV
Number of battery cell strings
20S

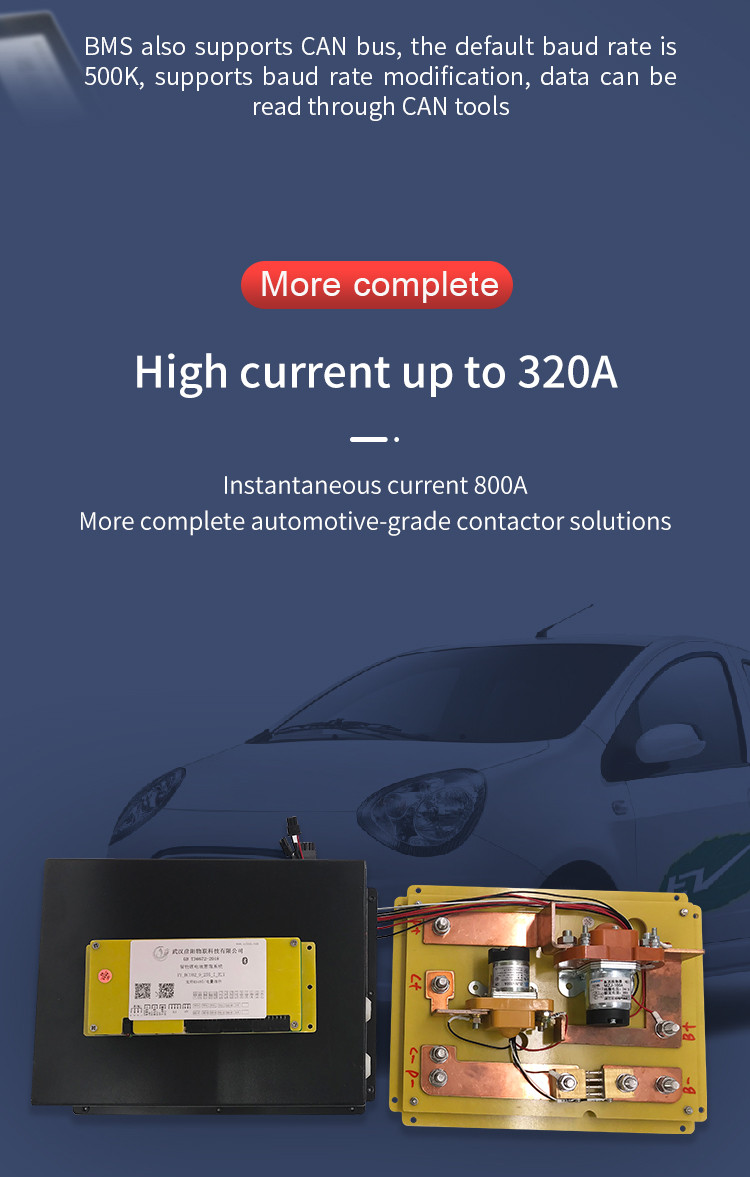

Continuous charge/discharge current
320A
Voltage
72V
Balanced
passive equalization
Temperature Protection
Support

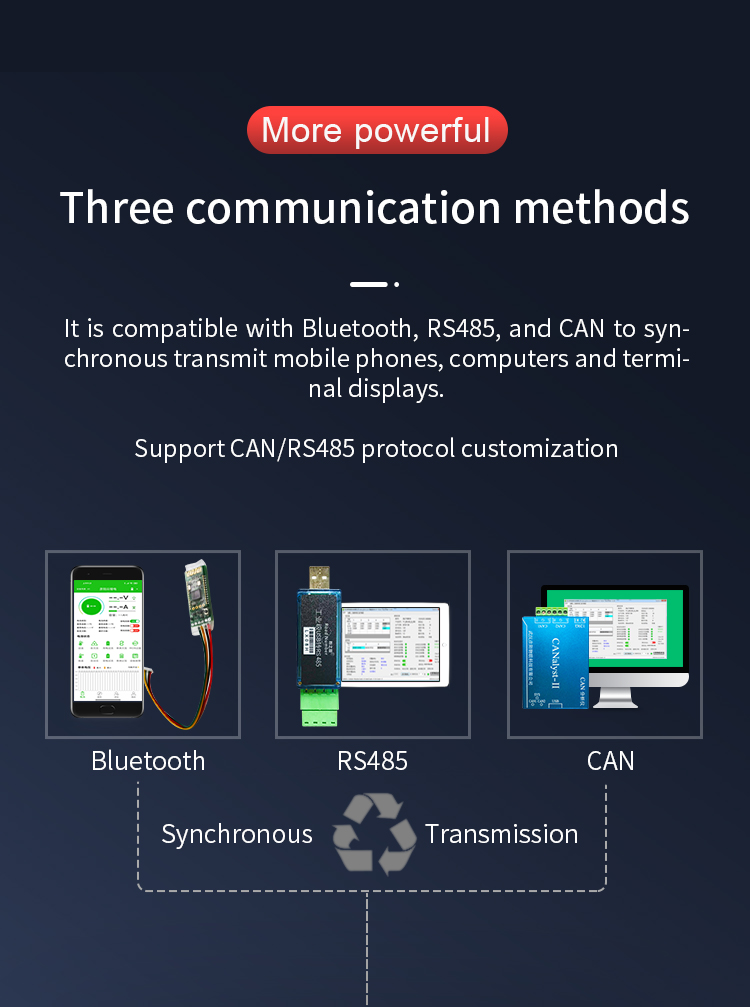

Communication method
CAN/RS485/Bluetooth APP

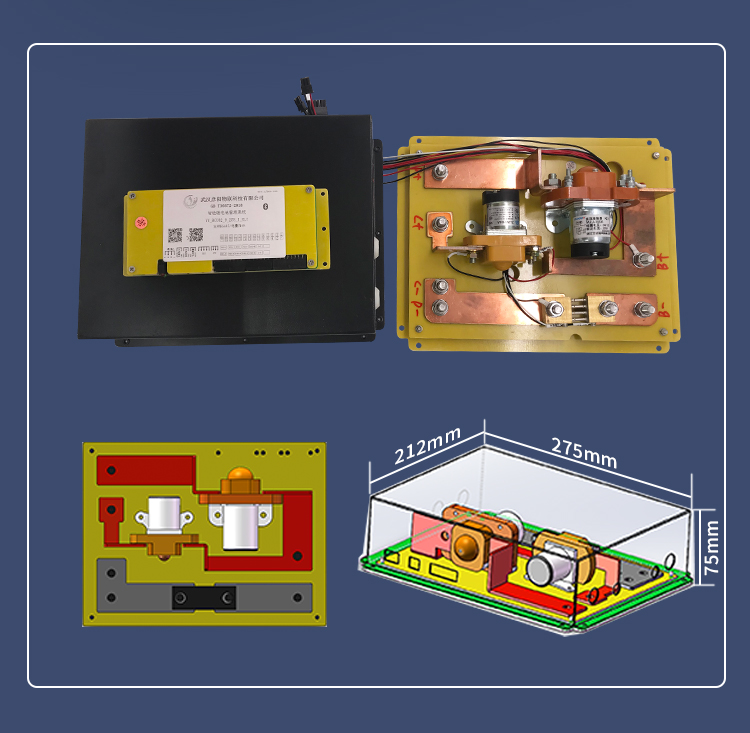

Size（mm）
274*214*70
收藏
  • Description
  • Details

72V high current relay box, support up to 320A continuous current, the best choice for electric motorcycles and low-speed vehicles, internal copper bus wiring, simple operation, convenient wiring and installation
